Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

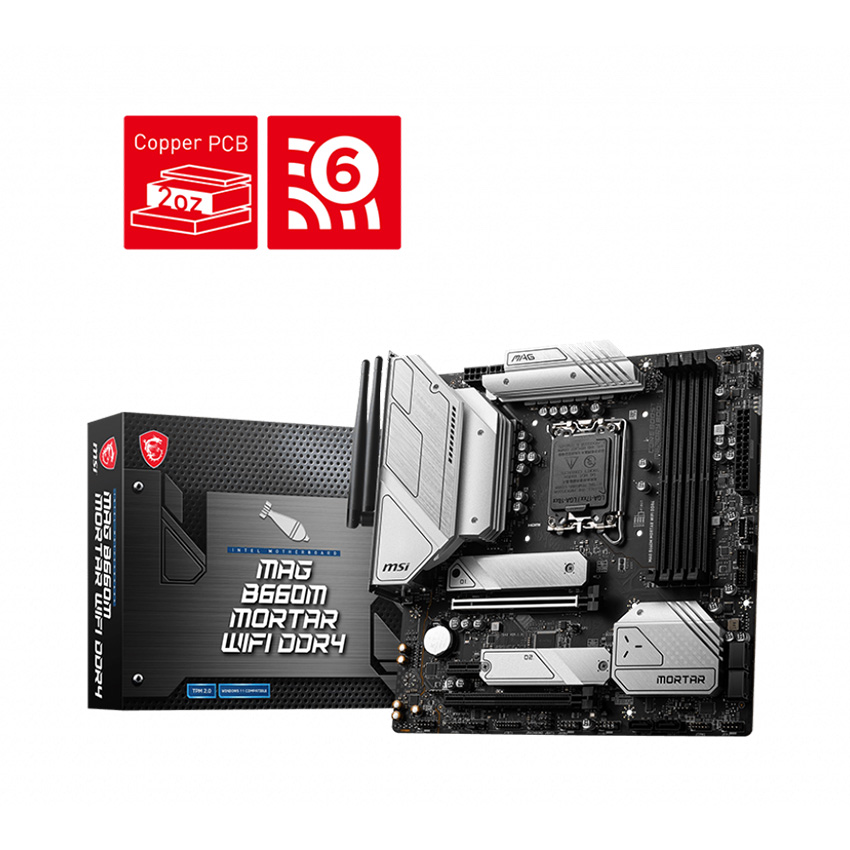

MAG B660M MORTAR WIFI DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x KHE IMM

BỘ NHỚ RAM TỐI ĐA (GB): 128GB

RAM DDR4: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

Khe cắm mở rộng

2 x PCI-EX16
1 x PCI-EX1

Ổ cứng hỗ trợ

6 x SATAIII

0/1/5/10 x RAID

Cổng kết nối (Internal)

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 2x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

LAN

1x Realtek® 8125BG 2.5G LAN

Wireless

Intel® Wi-Fi 6 module

Kích cỡ

mATX
